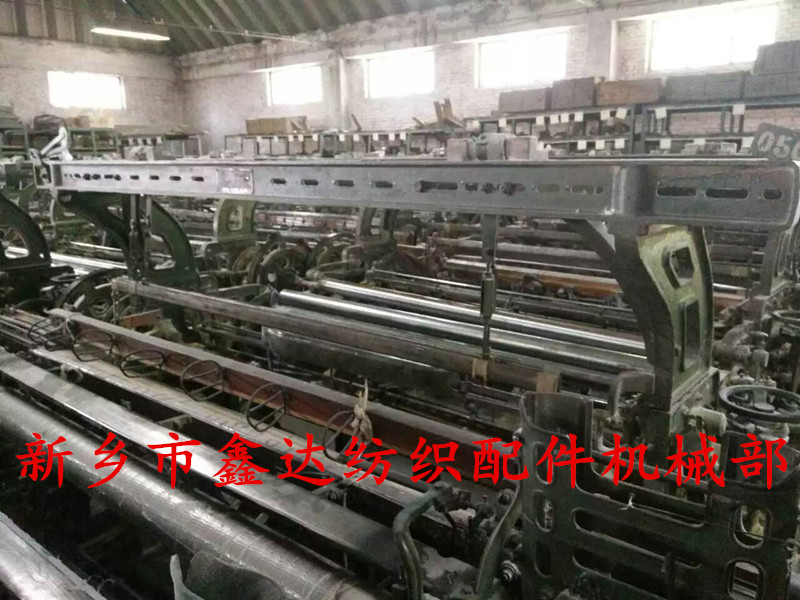

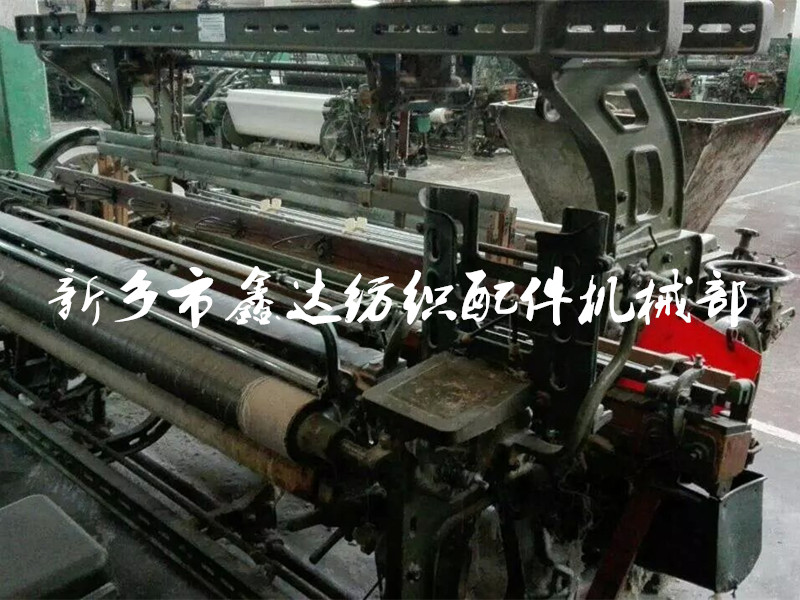

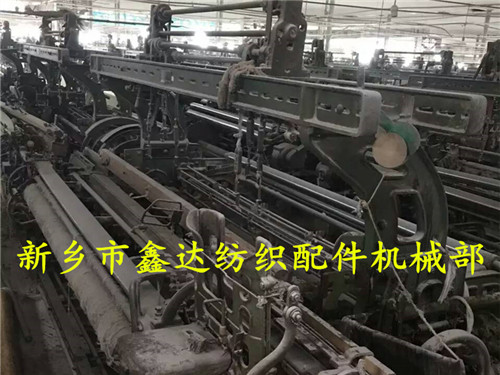

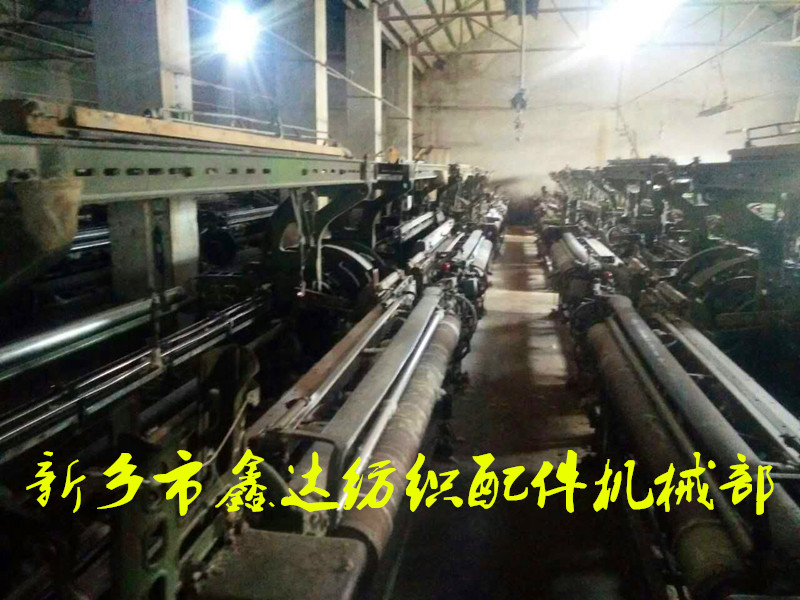

GA615 fully automatic shuttle changing loom is mainly suitable for weaving plain woven cotton fabric and general chemical fiber fabric.GA615 automatic weaving machine, such as the installation of multi arm lifting device,Woven fabric with more complex weave,Fabric weave from plain weave to 16 Piece heald frame.

I:Let off mechanism

1, type: semi positive semi negative automatic warp, automatic adjustment of warp tension.

2, a beam axle diameter: 110mm

3, beam disc diameter: 495mm, 550mm

II:Warp stop device

1, type: front and rear swing mechanical menopause

2, the tooth movement cycle: crank shaft rotation 2 times

3, menopause column number: 4 column

III:Shedding mechanism

1, type: the inside of the disc mounted on the top of the crane

2, the disc diameter: 42mm

3, heald frame number: 2 page heald frame (can be modified twill tread plate to page 5 or Modified multi arm lifting device 16 pages

VI：Throwing mechanism

1, type: underpart picking shuttle

2, the shuttle size: length 343mm, width 44.5mm, high 33.5mm (left hand)

3, the skin type: movable skin knot

4, leather knot size: long 105mm, wide 30mm, high 32mm

5, at the same time rotor diameter: 76mm

V：Beating up mechanism

1, type: crank shaft hand beating

2, crank shaft diameter: 40mm, 1515K diameter of 42mm.

3, crank shaft radius: 76mm

4, crank shaft center distance: 1540mm (1350mm loom), 1714mm (1500mm loom), 1816mm (1600mm loom), 2019mm (1800mm loom)

5, hand type: bearing type hand

6, hand length: 289mm

7, hand bolt diameter: 25mm,

From 8, hand center to the rockshaft Center: 685mm

9, the rocking shaft type: whole root

10, shaft diameter: 38mm

11, reed type: wood structure

12, shuttle board length: 1423mm (1350mm loom), 1597mm (1500mm loom), 1699mm (1600 looms), 1902mm (1800mm loom)

13, box bottom plate length: 581mm side 600mm side switch, the shuttle magazine.

VI：Warp protector

Type: reed

VII：Take-up mechanism

1, type: seven gear intermittent coiling

2, weft density range: 16-32 root/cm

3, the diameter of the piercing roller: 127mm

4, guide cloth roller diameter: 32mm

5, roller diameter: 95mm

VIII：Stretching device

1, type: single row copper ring roller

2, only a few: around 1 groups

3, the weft shear hammer: the role of the role of the hamm

IX:Weft stop

1, type: weft cam control side weft fork or point peck type weft

2, coiling and rewinding device

X:Weft feeder

1, type: automatic shuttle type

2, the shuttle magazine: vertical in-line

3, shuttle storage capacity: 10
